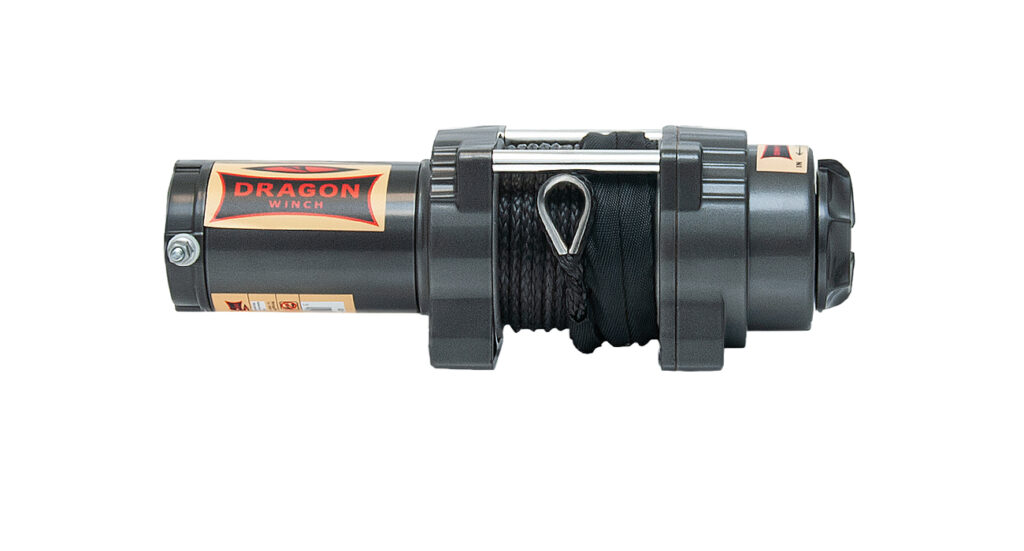

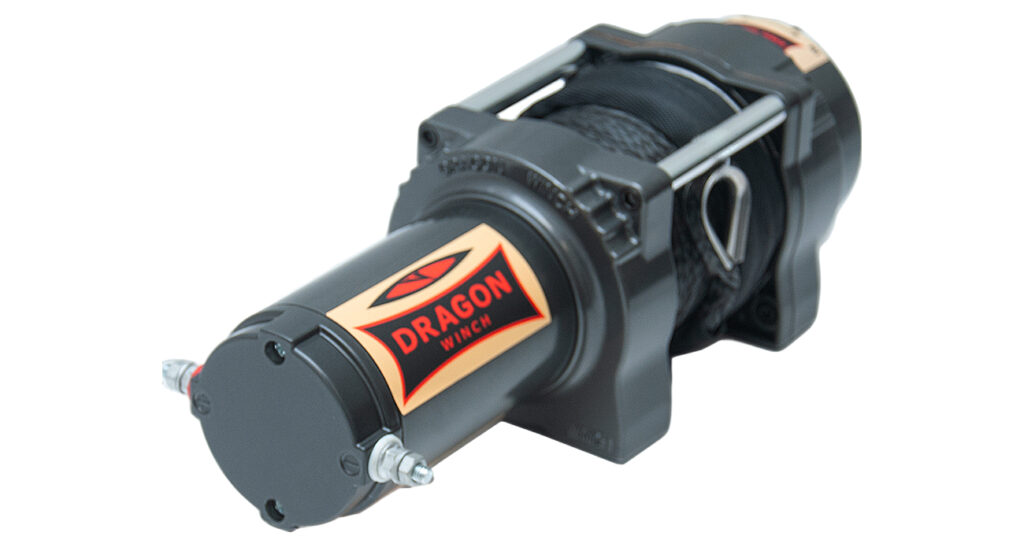

DWH 3500 HD
ATV & UTV
Dedicated for: ATV/UTV
Voltage: 12 V DC
Motor: 1,6 hp
Pulling rate: 3500 lb / 1588 kg
Gear train: 3 stage planetary
Reduction ratio: 138:1

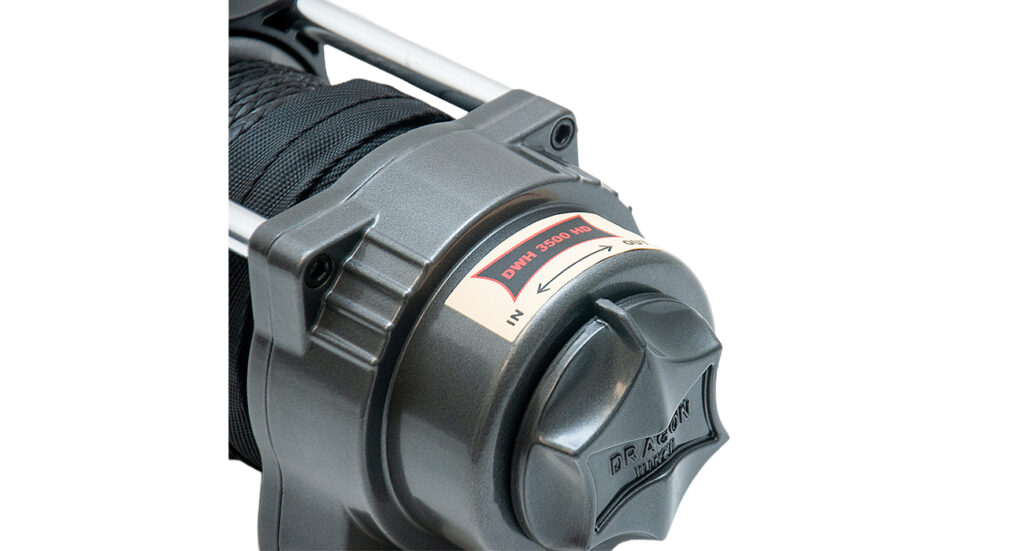

Brake: automatc
Length of the synthetic rope: 591″ (15 m)
Overall product dimensions (LxWxH):
13.9” x 4.5” x 4.5” (354 mm x 114 mm x 115 mm)
Weigh: 26 lbs. (12 kg)
Mounting screws (pcs): 4
Mounting bolt patern: 4.9″ x 3.0″ (124 mm x 76 mm)
DESIGNED AND ENGINEERED IN POLAND YOU CAN ORDER IT HERE ORDER
Set components
- synthetic rope /

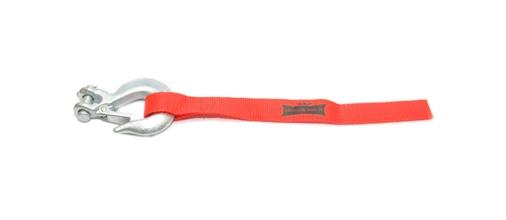

- hook /

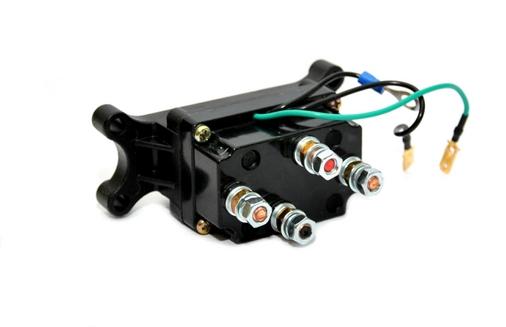

- control box /

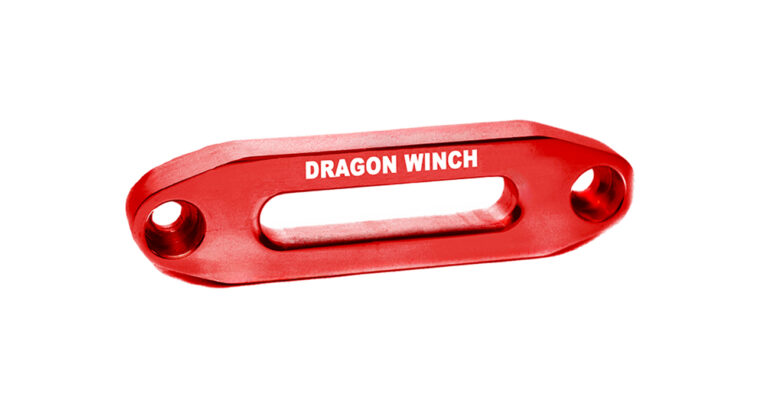

- roller guides or aluminum fairlead /

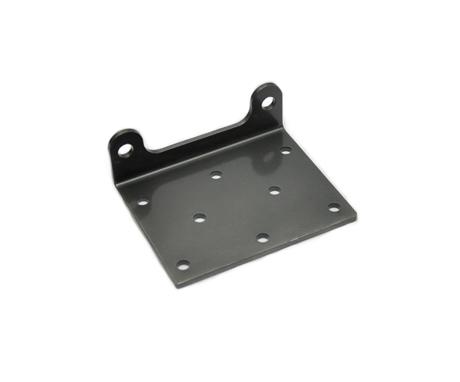

- universal mounting plate /

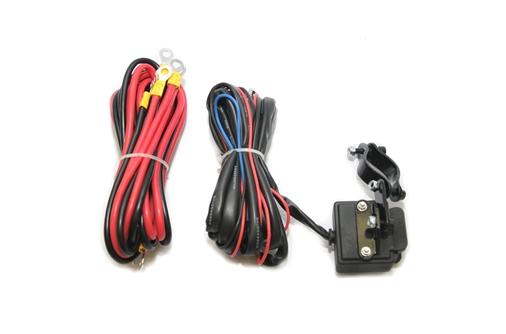

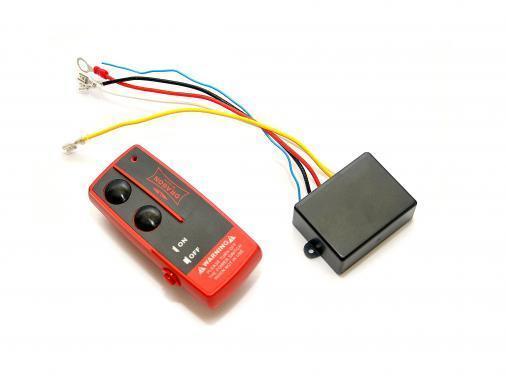

- switch on the steering wheel and wireless remote control /
- mounting screws
Technical parameters
DOWNLOAD THE MANUAL DOWNLOAD
CABLE WINDING SPEED AND POWER CONSUMPTION
(THE FIRST CABLE LAYER ON THE DRUM)
(THE FIRST CABLE LAYER ON THE DRUM)
| CABLE LOAD | lbs. (kg) | - | 1,000 (453) | 2,000 (907) | 3,500 (1587) |
| CABLE SPEED | ft./min m/min | 17.7 (5,4) | 15.7 (4,8) | 13.1 (4,0) | 9.8 (3,0) |
| POWER CONSUMPTION 12V | amps | 19 | 49 | 96 | 150 |
PULLING FORCE DEPENDING ON CABLE LAYER
| CABLE LAYER | 1 | 2 | 3 | 4 | 5 | |
| CABLE PULL | lbs. (kg) | 3,500 (1587) | 2,760 (1254) | 2,380 (1079) | 2,130 (967) | 1,720 (778) |
| CABLE LENGTH ON THE DRUM | in. (m.) | 98" (2,5) | 209" (5,3) | 331" (8,4) | 480" (12,2) | 591" (15,0) |
