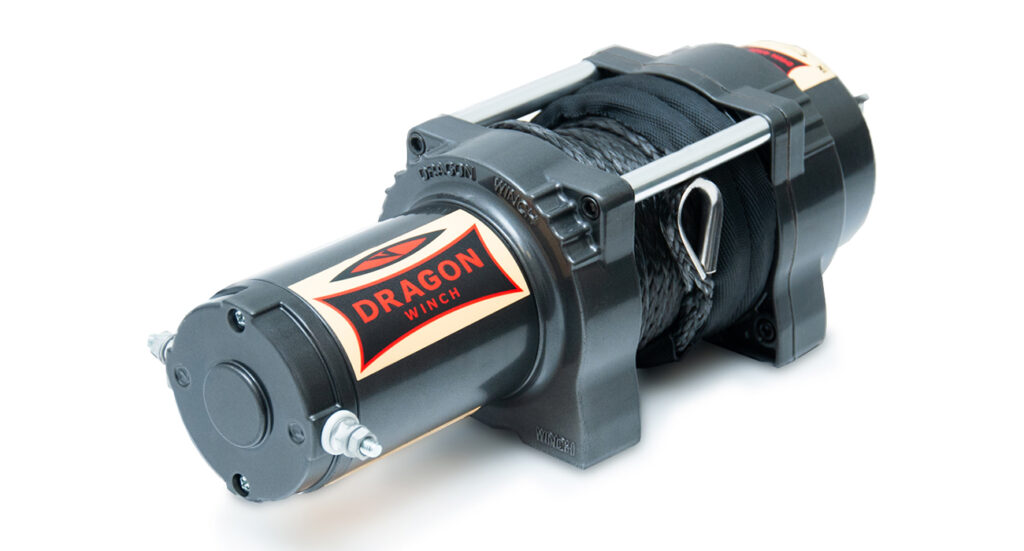

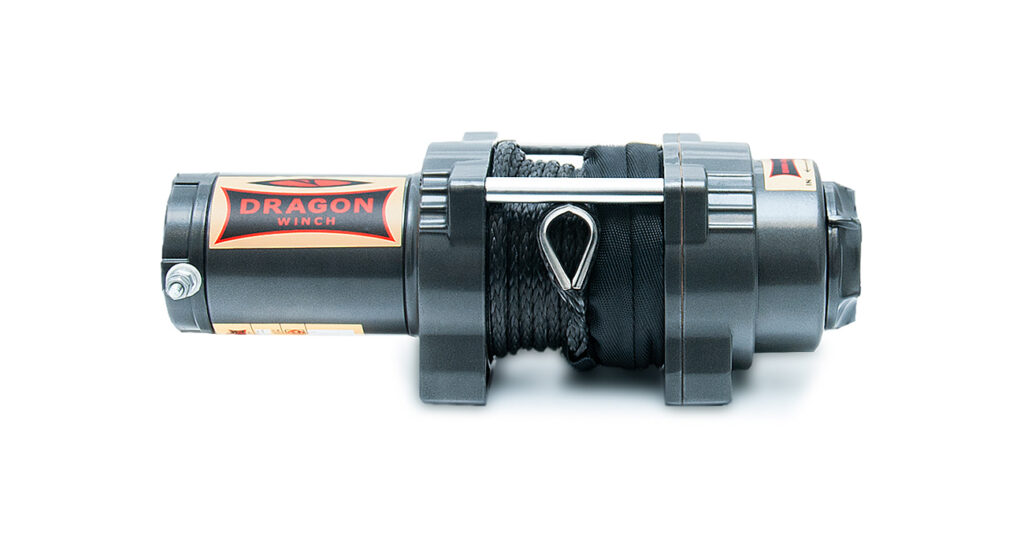

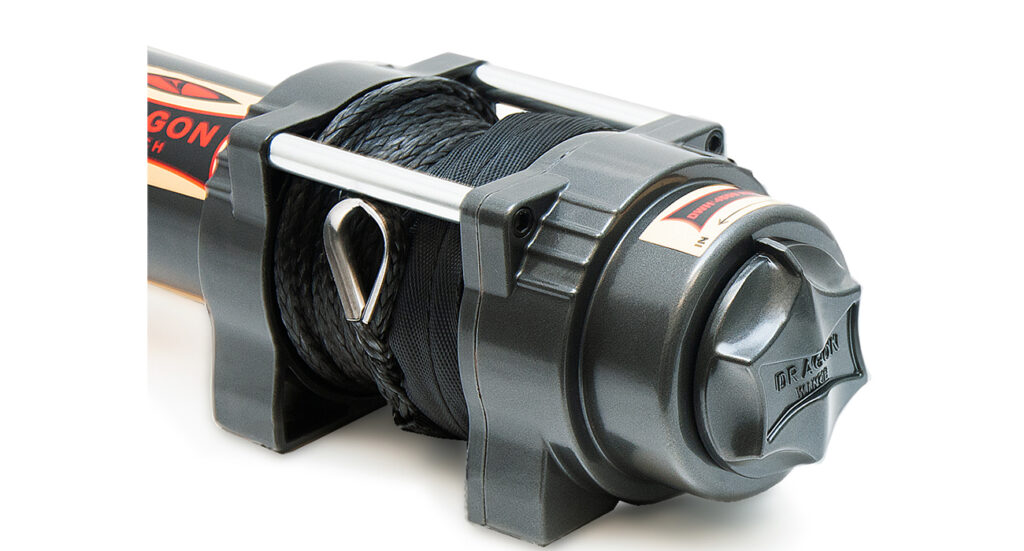

DWH 4500 HD
ATV & UTV
Dedicated for: ATV/UTV
Voltage: 12 V DC
Motor: 1,9 hp
Pulling rate: 4500 lb / 2041 kg
Gear train: 3 stage planetary
Reduction ratio: 138:1
Brake: automatic
Length of the synthetic rope: 591″ (15 m)
Overall product dimensions (LxWxH):
13.4″ x 4.5″ x 4.5″ (340 mm x 114 mm x 115 mm)
Weight: 29 lbs. (13 kg)
Mounting screws (pcs): 4
Mounting bolt patern: 4.9″ x 3.0″ (124 mm x 76 mm)
DESIGNED AND ENGINEERED IN POLAND YOU CAN ORDER IT HERE ORDER
Set components
- synthetic rope /
- hook /
- control box /
- roller guides or aluminum fairlead /
- remote control and wireless remote control /
- mounting screws /
- universal mounting plate
Technical parameters
DOWNLOAD THE MANUAL DOWNLOAD
CABLE WINDING SPEED AND POWER CONSUMPTION
(THE FIRST CABLE LAYER ON THE DRUM)
(THE FIRST CABLE LAYER ON THE DRUM)
| CABLE LOAD | lbs. (kg) | - | 1,000 (453) | 2,000 (907) | 4,500 (2041) |
| CABLE SPEED | ft./min m/min | 20.7 (6,3) | 17.4 (5,3) | 14.8 (4,5) | 6.9 (2,1) |
| POWER CONSUMPTION 12V | amp | 23 | 40 | 81 | 160 |
PULLING FORCE DEPENDING ON CABLE LAYER
| CABLE LAYER | 1 | 2 | 3 | 4 | 5 | |
| CABLE PULL | lbs. (kg) | 4,500 (2041) | 3,550 (1612) | 3,060 (1388) | 2,650 (1204) | 2,200 (1001) |
| CABLE LENGTH ON THE DRUM | in. (m.) | 91" (2,3) | 193" (4,9) | 315" (8,0) | 449" (11,4) | 591" (15,0) |
