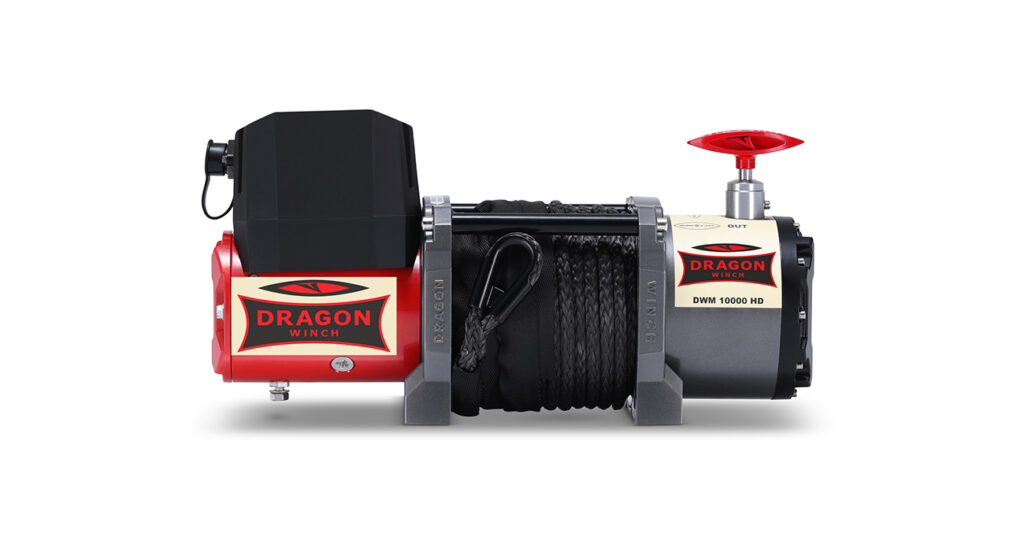

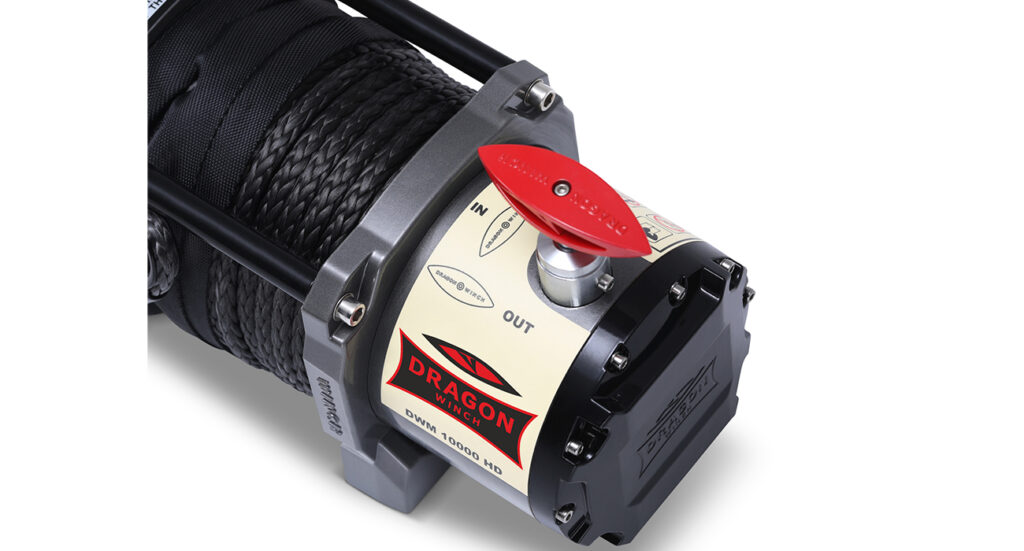

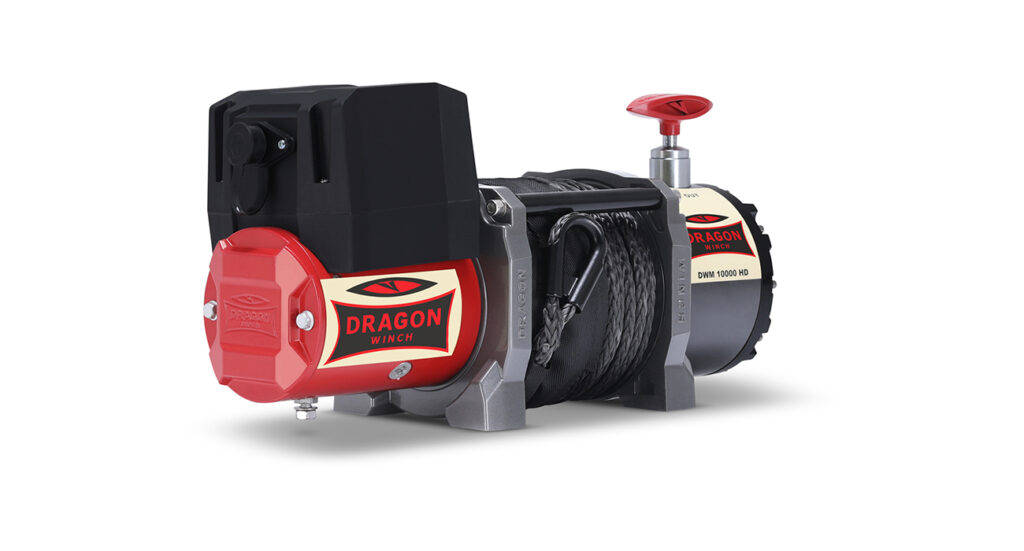

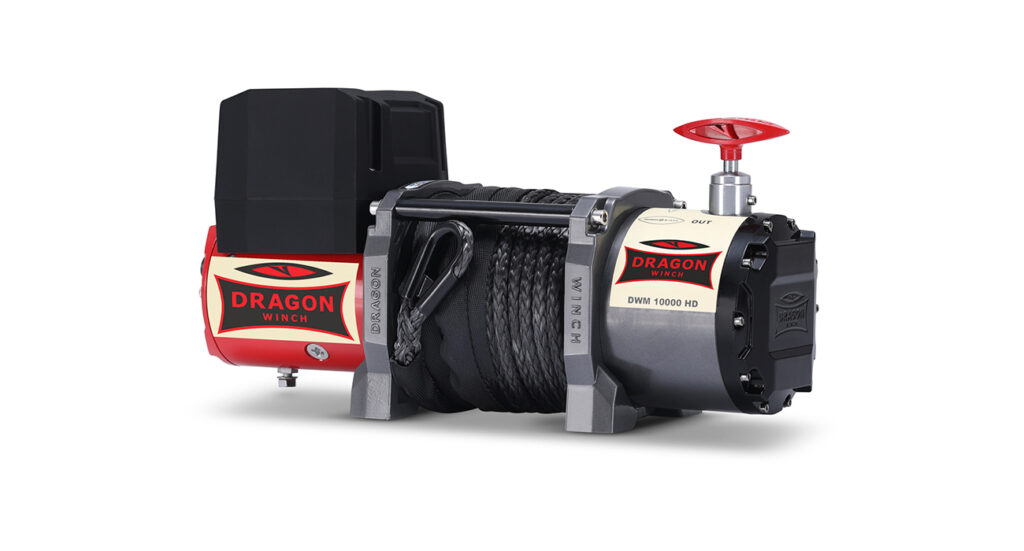

DWM 10000 HD
Commercial & Utility vehicles For Jeeps & Off Road
Dedicated for: off-road vehicles, tow trucks/ industrial vehicles
Voltage: 12 V DC
Motor: 6,8 hp
Pulling rate: 10 000 lb / 4536 kg
Gear train: 3 stage planetary
Reduction ratio: 265:1
Brake: dynamic
Length of the synthetic rope: 984″ (25 m)
Overall product dimensions (LxWxH):
17.7″ x 6.3″ x 9.6″ (450 mm x 159 mm x 243mm)
Weight: 77 lbs. (35 kg)
Mounting screws (pcs): 4
Mounting bolt patern: 6.5″ x 4.5″ (164 mm x 114 mm
DESIGNED AND ENGINEERED IN POLAND YOU CAN ORDER IT HERE ORDER
Set components
- synthetic rope /
- hook /
- control box /

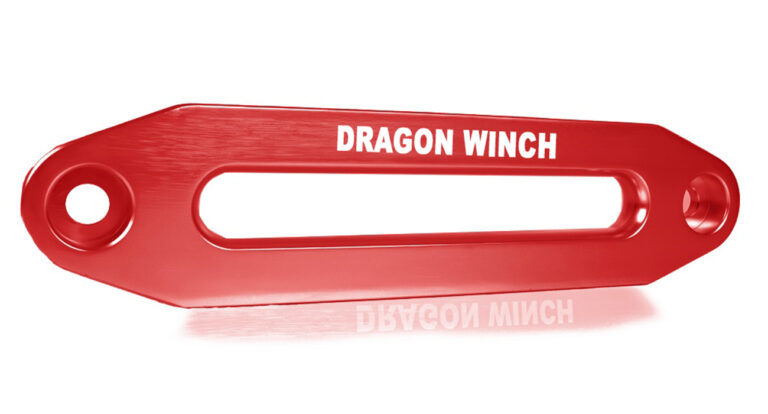

- aluminum fairlead /
- remote control and wireless remote control /
- mounting screw
Technical parameters
DOWNLOAD THE MANUAL DOWNLOAD
CABLE WINDING SPEED AND POWER CONSUMPTION
(THE FIRST CABLE LAYER ON THE DRUM)
(THE FIRST CABLE LAYER ON THE DRUM)
| CABLE LOAD | ft./min m/min | - | 4,000 (1814) | 10,000 (4536) |
| CABLE SPEED | lbs. (kg) | 19.4 (5,9) | 11.8 (3,6) | 4.3 (1,3) |
| POWER CONSUMPTION | amps | 50 | 180 | 390 |
PULLING FORCE DEPENDING ON CABLE LAYER
| CABLE LAYER | 1 | 2 | 3 | 4 | 5 | |
| CABLE PULL | lbs. (kg) | 10,000 (4536) | 7,900 (3583) | 6,800 (3084) | 5,900 (2676) | 5,000 (2270) |
| CABLE LENGTH ON THE DRUM | in. (m.) | 142" (3,6) | 307" (7,8) | 488" (12,4) | 701" (17,8) | 945" (24,0) |
