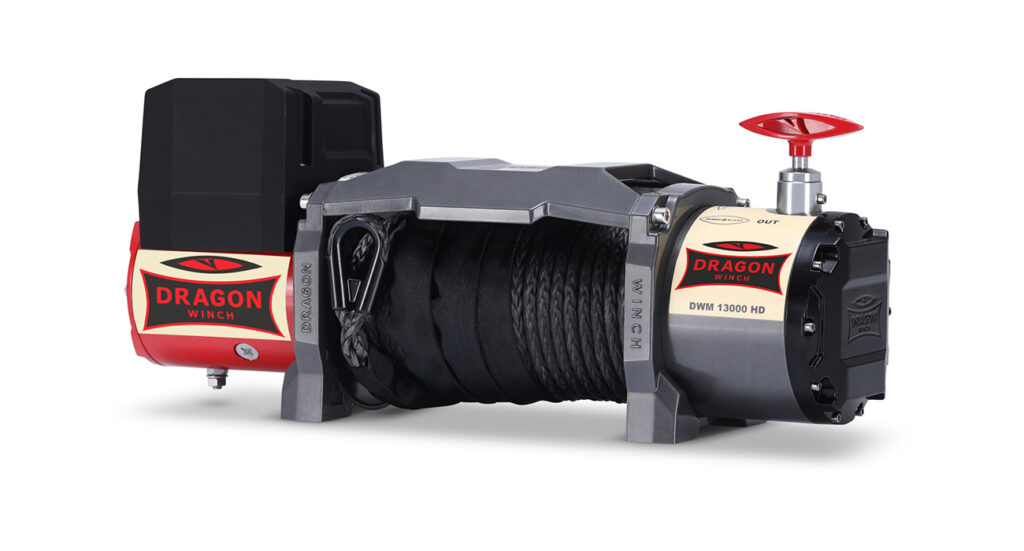

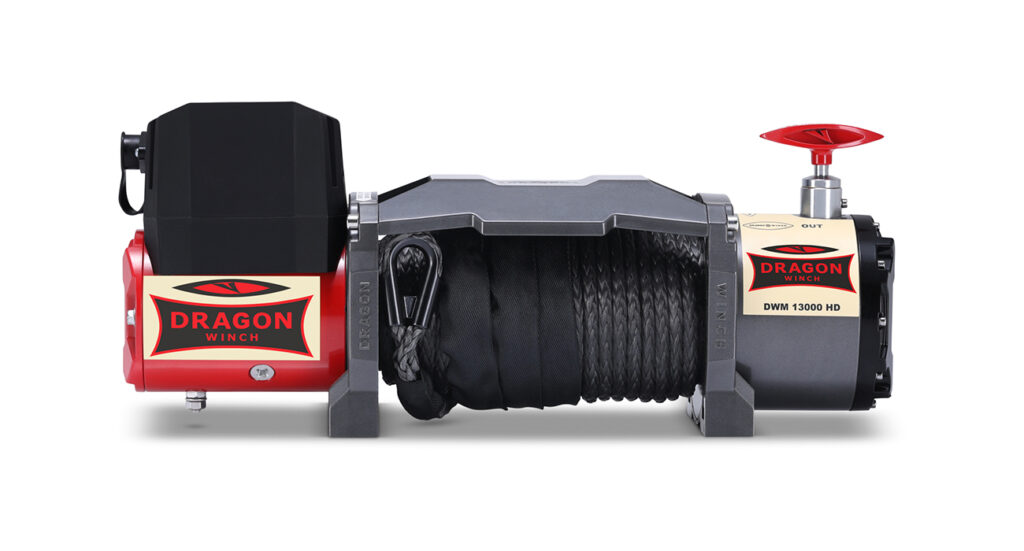

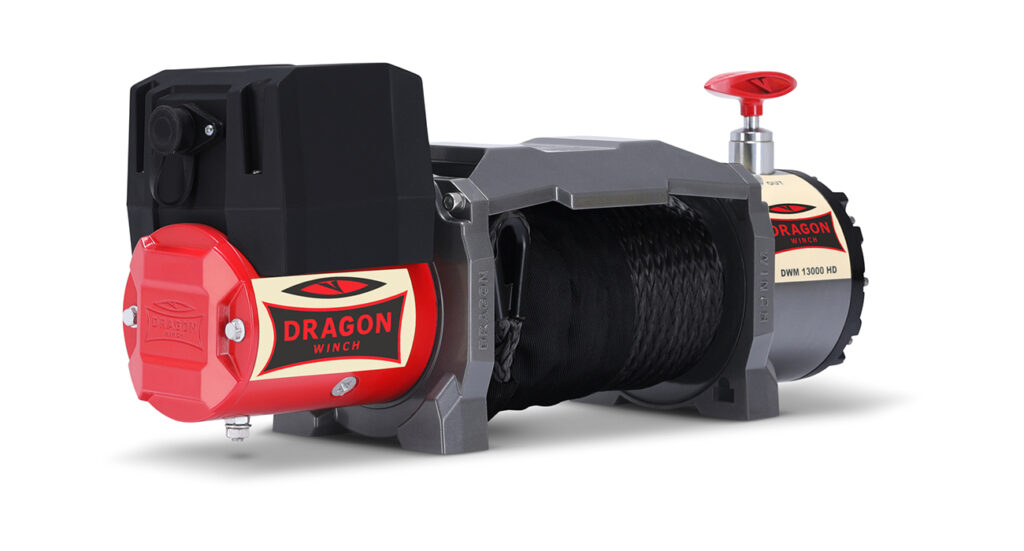

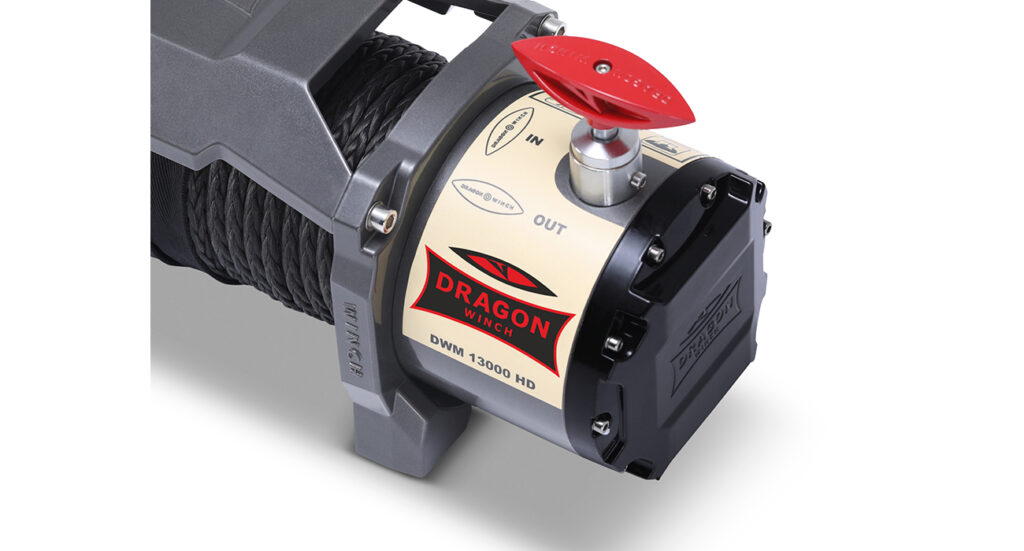

DWM 13000 HD
Commercial & Utility vehicles For Jeeps & Off Road
Dedicated for: off-road vehicles, tow trucks/ industrial vehicles
Voltage: 12 V DC or 24 V DC
Motor: 6,8 hp
Pulling rate: 13000 lb / 5897 kg
Gear train: 3 stage planetary
Reduction ratio: 265:1
Brake: dynamic
Length of the synthetic rope: 787″ / 1,181″ (20/30 m)
Overall product dimensions (LxWxH):
21.1″ x 6.5″ x 9.0″ (537 mm x 166 mm x 228 mm)
Weight: 86 lbs. (39 kg)
Mounting screws (pcs): 4
Mounting bolt patern: 10″ x 4.5″ (254 mm x 114 mm)
DESIGNED AND ENGINEERED IN POLAND YOU CAN ORDER IT HERE ORDER
Set components
- synthetic rope /
- hook /
- control box /
- aluminum fairlead /
- remote control and wireless remote control /
- mounting screws
Technical parameters
DOWNLOAD THE MANUAL DOWNLOAD
CABLE WINDING SPEED AND POWER CONSUMPTION
(THE FIRST CABLE LAYER ON THE DRUM)
(THE FIRST CABLE LAYER ON THE DRUM)
| CABLE LOAD | lbs. (kg) | 4,000 (1814) | 8,000 (3629) | 13,000 (5897) | |
| CABLE SPEED | ft./min m/min | 19.4 (5,9) | 14.4 (4,4) | 9.2 (2,8) | 2.6 (0,8) |
| POWER CONSUMPTION 12V | amps | 58 | 158 | 314 | 448 |
| POWER CONSUMPTION 24V | amps | 35 | 89 | 178 | 245 |
PULLING FORCE DEPENDING ON CABLE LAYER
| CABLE LAYER | 1 | 2 | 3 | 4 | 5 | |
| CABLE SPEED | lbs. (kg) | 13,000 (5897) | 10,270 (4658) | 8,840 (4009) | 7,630 (3463) | 6,370 (2889) |
| CABLE LENGTH ON THE DRUM | in. (m.) | 193" (4,9) | 433" (11,0) | 701" (17,8) | 1,024" (26,0) | 1,181" (30,0) |
