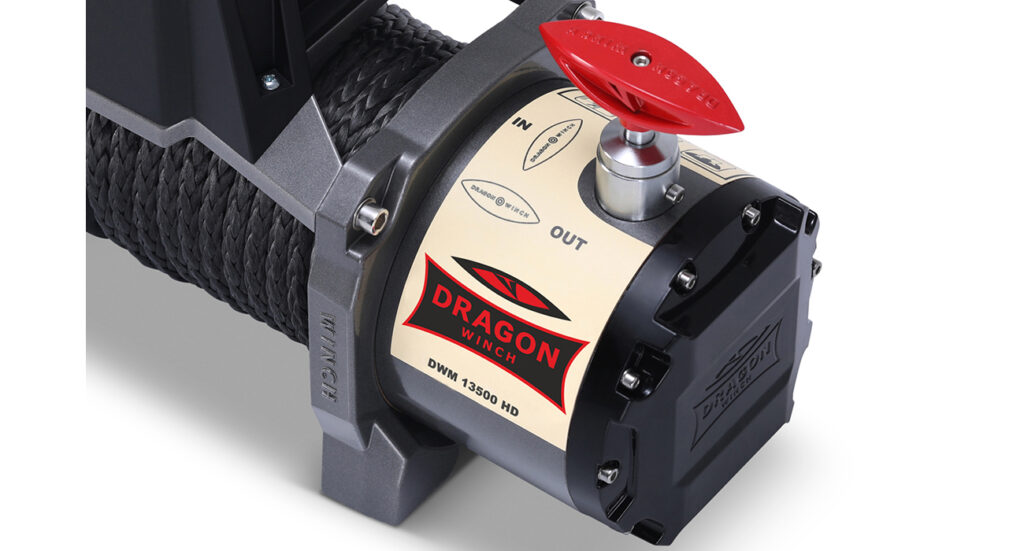

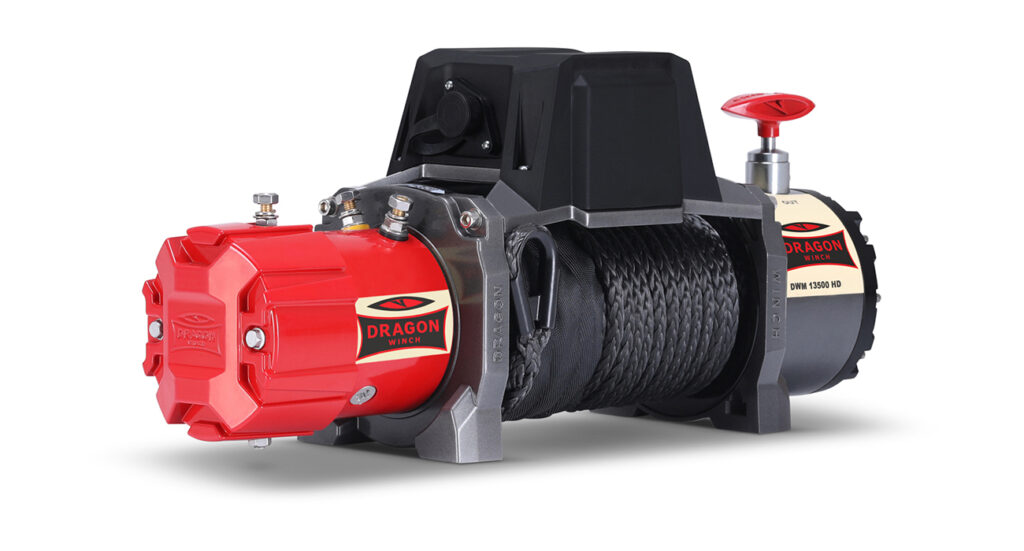

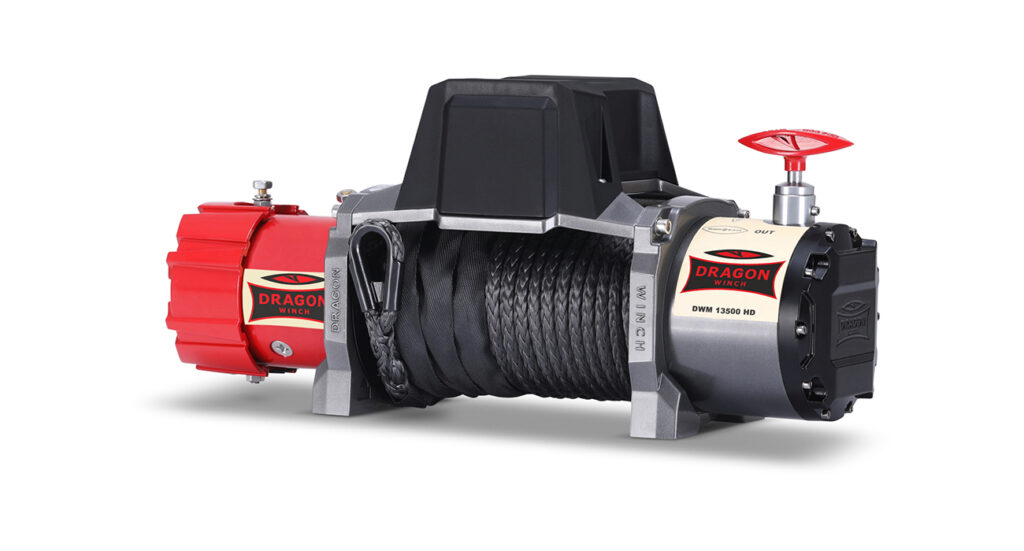

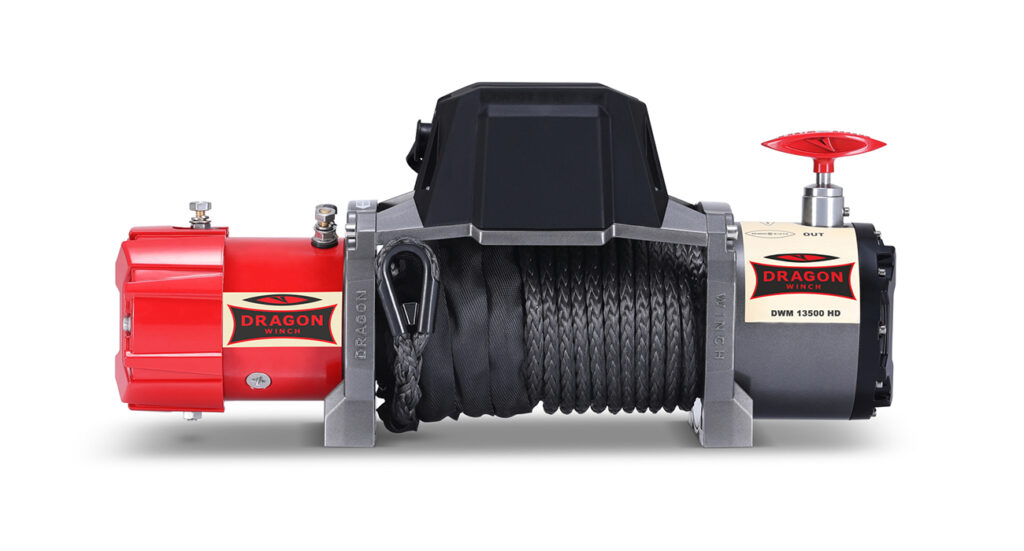

DWM 13500 HD
For Jeeps & Off Road Emergency & defense
Voltage: 12V DC
Motor: 6,8 HP
Pulling rate: 13500 lb/ 6123 kg
Gear train: 3 stage planetary
Reduction rotio: 265:1
Brake: dynamic
Length of the synthetic rope: 787″ (20 m)
Mounting bolt patern: 10″ x 4.5″ (254 mm x 114 mm)
Overall product dimensions (LxWxH): 21.5″ x 6.5″ x 9.6″
(546 mm x 166 mm x 244mm)
DESIGNED AND ENGINEERED IN POLAND
Set components
- synthetic rope /
- hook /
- control box /

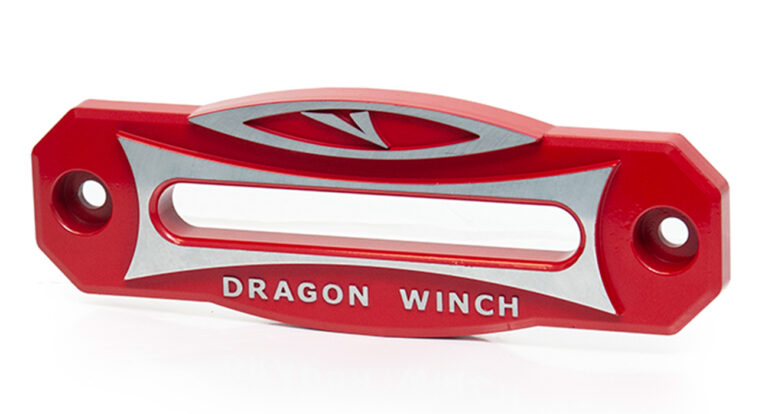

- aluminum fairlead /
- remote control and wireless remote control /

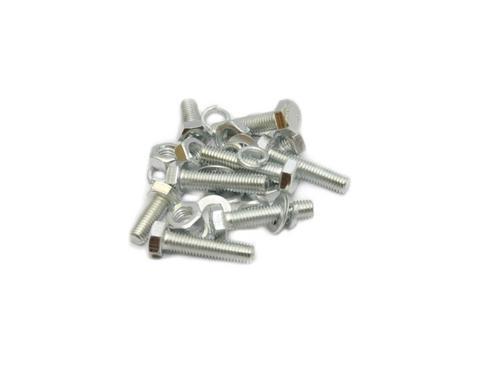

- mounting screw
Technical parameters
DOWNLOAD THE MANUAL DOWNLOAD
CABLE WINDING SPEED AND POWER CONSUMPTION
(THE FIRST CABLE LAYER ON THE DRUM)
(THE FIRST CABLE LAYER ON THE DRUM)
| CABLE LOAD | lbs. (kg) | 4,000 (1814) | 8,000 (3629) | 13,500 (6123) | |
| CABLE SPEED | ft./min m/min | 19.4 (5,9) | 14.4 (4,4) | 9.2 (2,8) | 2.5 (0,75) |
| POWER CONSUMPTION 12V | amps | 58 | 158 | 314 | 458 |
| POWER CONSUMPTION 24V | amps | 35 | 89 | 178 | 252 |
PULLING FORCE DEPENDING ON CABLE LAYER
| CABLE LAYER | 1 | 2 | 3 | 4 | 5 | |
| CABLE SPEED | lbs. (kg) | 13,500 (6123) | 10,670 (4838) | 9,180 (4164) | 7,930 (3597) | 6,620 (3001) |
| CABLE LENGTH ON THE DRUM | in. (m.) | 193" (4,9) | 433" (11,0) | 701" (17,8) | 1,024" (26,0) | 1,181" (30,0) |
