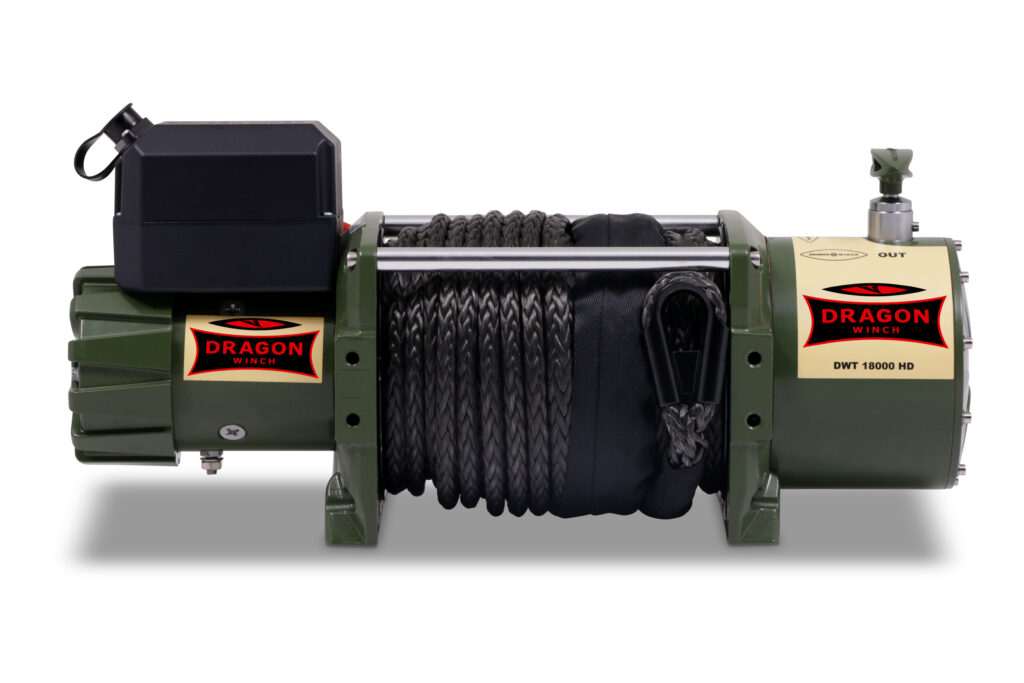

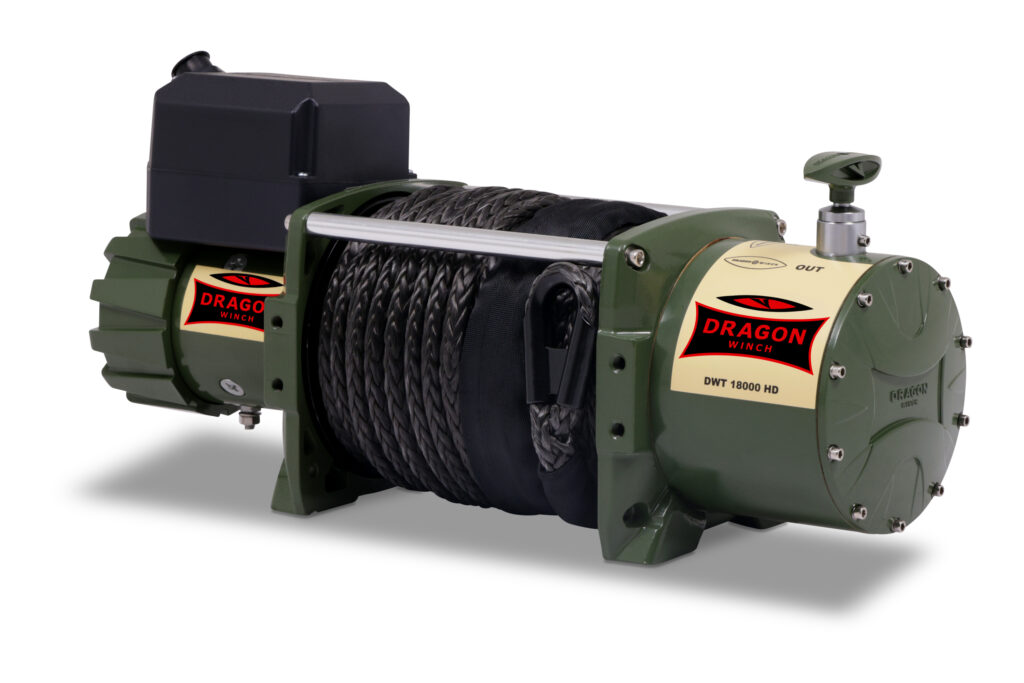

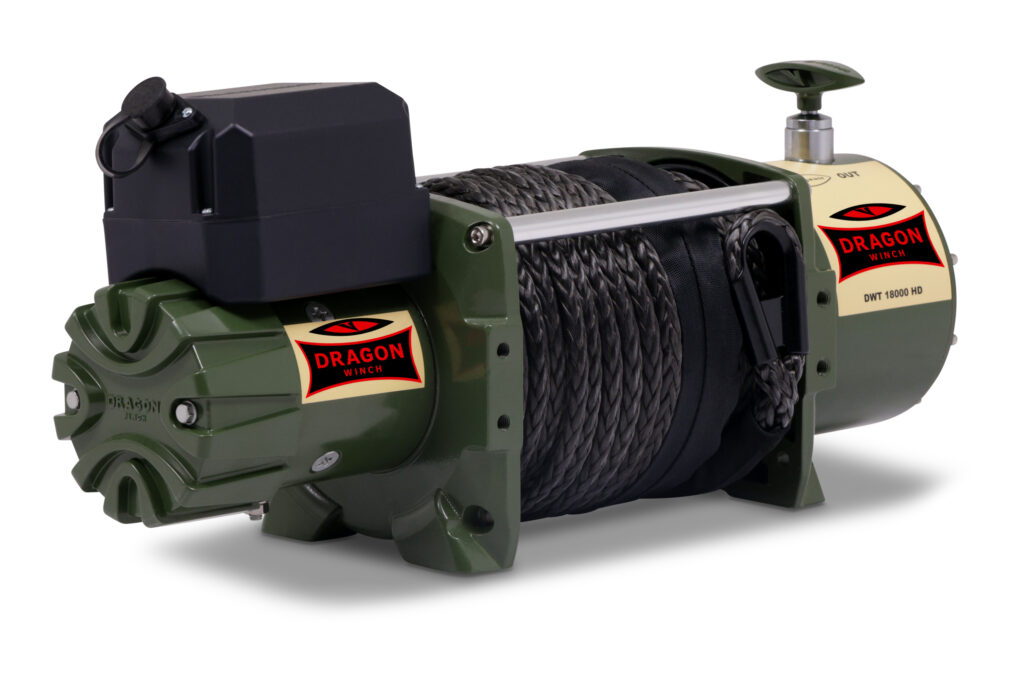

DWT 18000 HD
Commercial & Utility vehicles Emergency & defense
Dedicated for: off-road vehicles, tow trucks / industrial vehicles
Voltage: 24 V DC
Motor: 9,0 hp
Pulling rate: 18,000 lbs / 8165 kg
Gear train: 3 stage planetary
Reduction ratio: 358:1
Brake: dynamic
Length of the synthetic rope: 827″ (21 m)
Overall product dimensions (LxWxH):
23.1″ x 7,7″ x 10.4″ (586 mm x 196 mm x 265 mm)
Weight: 139 lbs. (63 kg)
Mounting screws (pcs): 4
Mounting bolt patern: 10″ x 4.5″
(254 mm x 114 mm)
DESIGNED AND ENGINEERED IN POLAND
Set components
- synthetic rope /
- hook /
- control box /
- aluminum fairlead /
- remote control and wireless remote control /
- mounting screw
Technical parameters
DOWNLOAD THE MANUAL DOWNLOAD
CABLE WINDING SPEED AND POWER CONSUMPTION
(THE FIRST CABLE LAYER ON THE DRUM)
(THE FIRST CABLE LAYER ON THE DRUM)
| CABLE LOAD | lbs. (kg) | - | 6,000 (2721) | 12,000 (5443) | 18,000 (8165) |
| CABLE SPEED | ft./min (m/min) | 18.0 (5,5) | 13.5 (4,1) | 10.2 (3,1) | 4.9 (1,5) |
| POWER CONSUMPTION 24 V | amps | 39 | 105 | 214 | 280 |
PULLING FORCE DEPENDING ON CABLE LAYER
| CABLE LAYER | 1 | 2 | 3 | 4 | 5 | |
| CABLE PULL | lbs. (kg) | 18,000 (8165) | 14,200 (6450) | 12,240 (5552) | 10,620 (4817) | 8,820 (4001) |
| CABLE LENGTH ON THE DRUM | in. (m) | 205" (5,2) | 449" (11,4) | 748" (19,0) | 1,094" (27,8) | 1,181" (30,0) |
