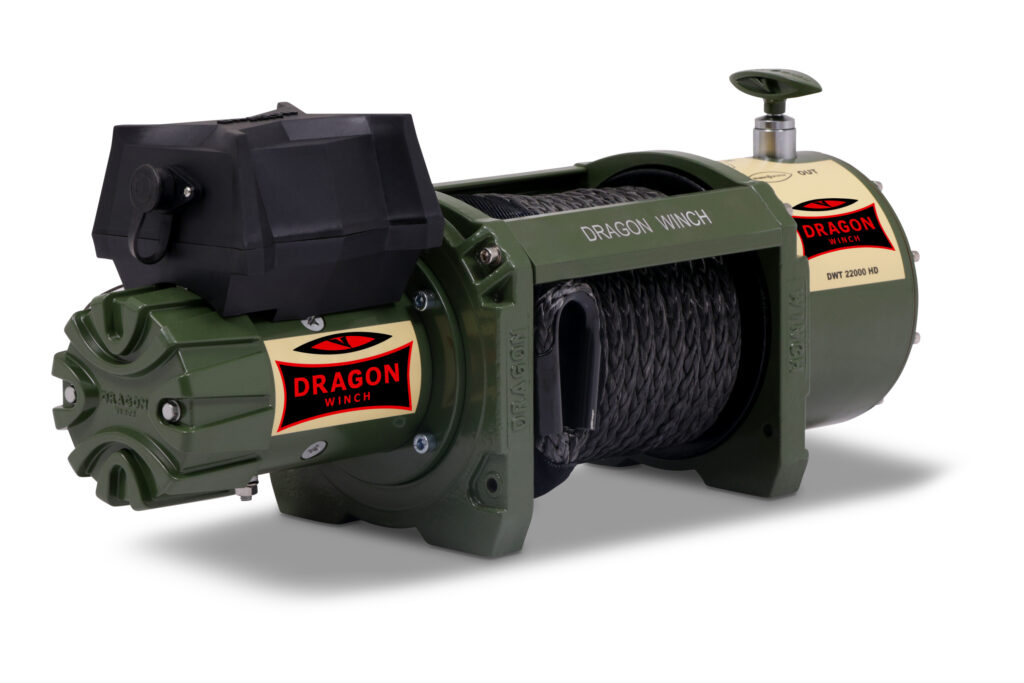

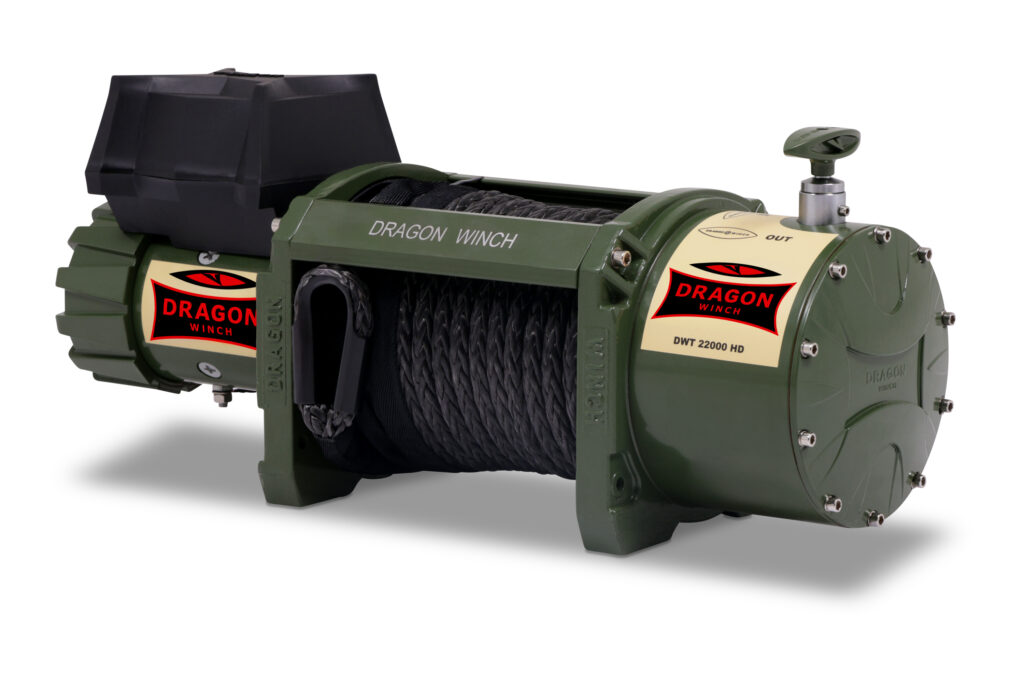

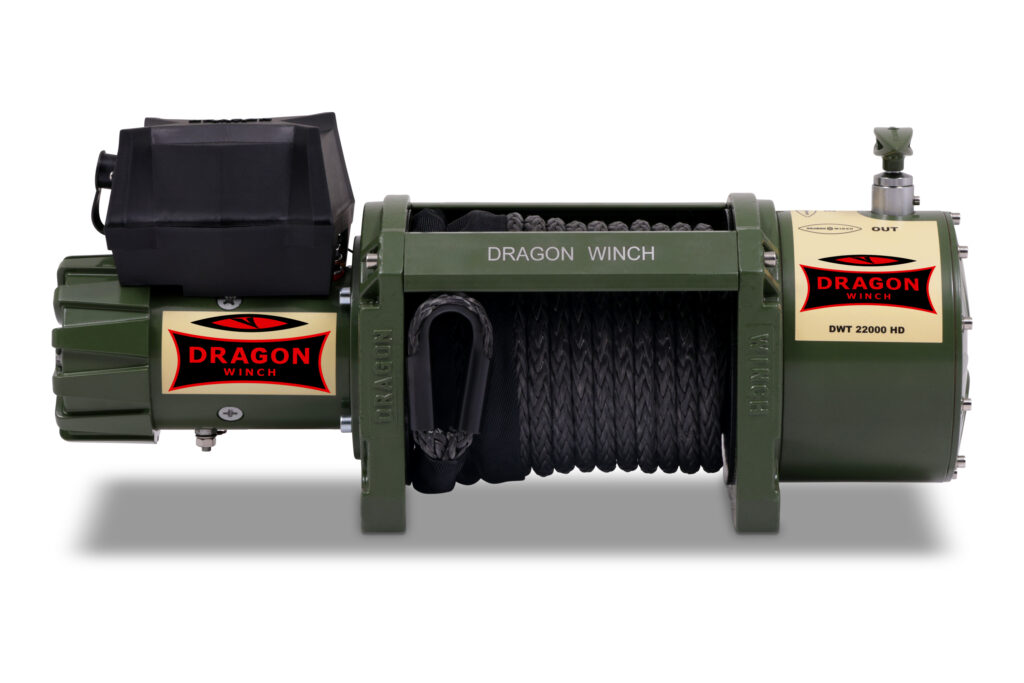

DWT 22000 HD
Commercial & Utility vehicles Emergency & defense
Dedicated for: special trucks, tow trucks / industrial vehicles
Voltage: 24 V DC
Motor: 9,5 hp
Pulling rate: 22,000 lbs / 9979 kg
Reduction ratio: 463:1
Gear train: 3 stage planetary
Brake: dynamic
Length of the synthetic rope: 827″ (21 m)
Overall product dimensions (LxWxH):
25.1″ x 8.5″ x 10.7″ (637 mm x 217 mm x 271 mm)
Weight: 176 lbs. (80 kg)
Mounting screws (pcs): 8
Mounting bolt patern: 10″ x 4.5″ / 10″ x 6.5″
(254 mm x 114 mm / 254 mm x 164 mm)
DESIGNED AND ENGINEERED IN POLAND
Set components
- synthetic rope /

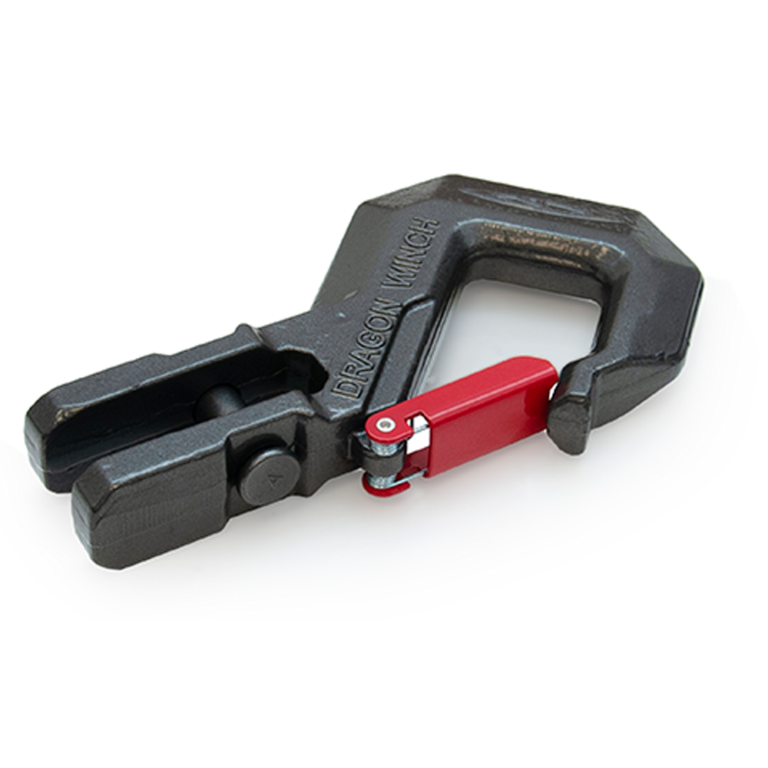

- hook /
- control box /

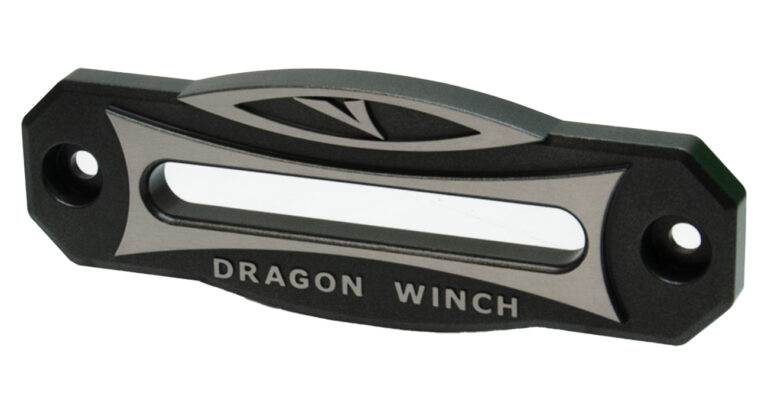

- aluminum fairlead /

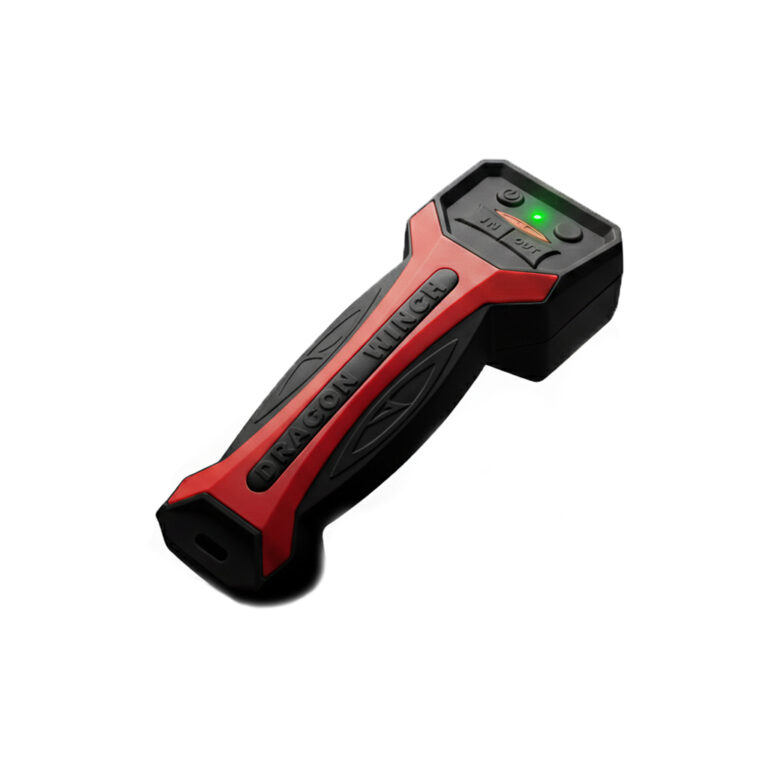

- remote control and wireless remote control /

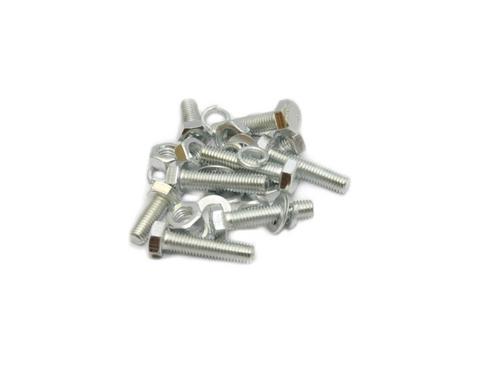

- mounting screws
Technical parameters
DOWNLOAD THE MANUAL DOWNLOAD
CABLE WINDING SPEED AND POWER CONSUMPTION
(THE FIRST CABLE LAYER ON THE DRUM)
(THE FIRST CABLE LAYER ON THE DRUM)
| CABLE LOAD | lbs. (kg) | 6,000 (2721) | 12,000 (5443) | 22,000 (9979) | |
| CABLE SPEED | ft./min (m/min) | 14.8 (4,5) | 12.1 (3,7) | 9.8 (3,0) | 5.6 (1,7) |
| POWER CONSUMPTION 24 V | amps | 42 | 112 | 232 | 305 |
PULLING FORCE DEPENDING ON CABLE LAYER
| CABLE LAYER | 1 | 2 | 3 | 4 | 5 | |
| CABLE PULL | lbs. (kg) | 22,000 (9979) | 17,380 (7883) | 14,960 (6786) | 12,980 (5887) | 10,780 (4889) |
| CABLE LENGTH ON THE DRUM | in. (m.) | 201" (5,1) | 437" (11,1) | 724" (18,4) | 1,043" (26,5) | 1,181" (30,0) |
